SUN-EC Ethernet Convertor

Модель: SUN-EC

E1 to Ethernet

    Ключевые особенности

  • Realize transparent transfer Ethernet data in 1 to 4/8 E1 channels
  • 10M/100M Ethernet, full/half duplex self adapt, support VLAN
  • Ethernet support AUTO-MDIX( cross over and straight through self adapt)
  • Setting CRC alarm limitation to auto isolate lines with low transfer quality, single direction. When one direction error rate over limitation, disconnect only one direction, the other is not affected. Unbalance in two directions
  • Allow 4 E1 channels up to 10ms transfer delay. when the delay over the limitation, can stop transfer automatically
  • Support Dynamic Ethernet MAC address(4096), having local address filter function
  • E1 interface having internal clock resume circuit and HDB3 codec circuit
  • E1 circuit number auto-negotiation, E1 circuit auto assemble/disassemble
  • E1 interface compliant to ITU G.703, G.704 and G.823
  • Provide balanced 120-Ohm RJ45 or unbalanced 75-Ohm BNC E1 interface
  • Optional copper or fiber optic Ethernet interface
  • Support reset remote system from local system
  • Support SNMP function (Optional)
  • описание
  • спецификация
  • Информация для заказа

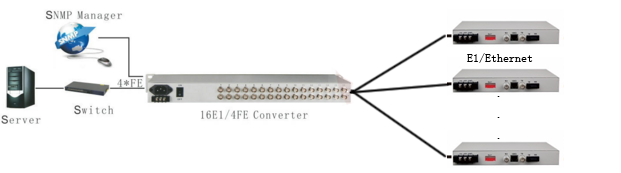

  • Применение
  • FAQ
  • Видео продукта
  • 　Sun Telecom’s SUN-EC series of Ethernet convertors apply reverse multiplexing technology to transfer 10M/100M Ethernet data by using E1s. It realizes conversion between 1 to 4/8/16 E1 channels and Ethernet interface. It is capable of providing a real Ethernet throughput of 8Mbps respectively. And it also automatically adapted to lower data rates from 2Mbps, in case that less E1 circuits is employed.
  • Parameters Specifications
    E1 Interface
    Interface Standard comply with protocol G.703
    Interface Rate (kbps) 2048kbps ± 50ppm
    Interface Code HDB3
    E1 Impedance 75Ω (unbalance), 120Ω (balance)
    Jitter Tolerance In accord with protocol G.742 and G.823
    Ethernet Interface (10/100M UTP)
    Interface Rate 10/100Mbps, half/full duplex auto-negotiation
    Interface Standard Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
    Mac Address Capability 4096
    Connector RJ45, support Auto-MDIX
    Operating Environment
    Power Supply AC180V ~ 260V or DC 48V or DC 24V
    Power Consumption (W) ≤10
    Working Temperature (°C) -10 ~ 50
    Dimension (mm) Standalone 216(W) * 140(D) * 31(H)
    Rack mount 483(W) * 138(D) * 44(H)
    Working Humidity 5%~95 % (no condensation)
    Storage Temperature (°C) -40 ~ 70
    Storage Humidity 5%~95 % (no condensation)

  • Model Name Description
    SUN-EC-1E1-1FE-75/120 Ethernet Convertor 1 channel E1 to 1 channel Ethernet; 1 port of RJ45 (120Ω) and BNC(75Ω) E1 interface, 1 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
    SUN-EC-4E1-1FE-75/120 Ethernet Convertor 4 channel E1 to 1 channel Ethernet; 4 ports of RJ45 (120Ω) and BNC(75Ω) E1 interface, 1 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
    SUN-EC-8E1-1FE-75/120 Ethernet Convertor 8 channel E1 to 1 channel Ethernet; 8 ports of RJ45 (120Ω) and BNC(75Ω) E1 interface, 1 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
    SUN-EC-1E1-4FE-75/120 Ethernet Convertor 1 channel E1 to 4 channel Ethernet; 1 port of RJ45 (120Ω) and BNC(75Ω) E1 interface, 4 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
    SUN-EC-4E1-4FE-75/120 Ethernet Convertor 4 channel E1 to 4 channel Ethernet; 4 ports of RJ45 (120Ω) and BNC(75Ω) E1 interface, 4 ports of 10/100Mbps RJ45 Ethernet interface; AC 220V
    SUN-EC-8E1-4FE-75/120 Ethernet Convertor 8 channel E1 to 4 channel Ethernet; 8 ports of RJ45 (120Ω) and BNC(75Ω) E1 interface, 4 ports of 10/100Mbps RJ45 Ethernet interface; AC 220V
    SUN-EC-16E1-4FE-75/120 Ethernet Convertor 16 channel E1 to 4 channel Ethernet; 8 ports of RJ45 (120Ω) and BNC(75Ω) E1 interface, 4 ports of 10/100Mbps RJ45 Ethernet interface; AC 220V
