SUN-VMC Media Converter

Модель: SUN-VMC

SM ⁄ MM, Tx ⁄ Rx, R ⁄ F Ch, FC ⁄ SC port, Card ⁄ Rack St-alone, Aluminum

    Ключевые особенности

  • Point to point connection and no decrement in the value of SNR
  • Any high-resolution video signal
  • No-damage regenerative trunk of video
  • Auto-compatible PAL, NTSC and SECAM video system
  • Three light protection
  • Hot-swappable function
  • описание
  • спецификация
  • Информация для заказа
  • Применение
  • FAQ
  • Видео продукта
  • 　Sun Telecom’s SUN-VMC series of media converter is based on SOC advanced digital signal processing technology and provides customers with a high quality solution for transmission of uncompressed digital video. This series of converters can also transmit audio, data, telephone, Ethernet and On/Off signals over a single optical fiber. The optical and electrical interfaces of this series of converters follow international standards and are applicable in different types of working environment.
  • Specifications
    Parameters Specification
    Optical Interface FC,ST, SC, LC (optional)
    Transmission Distance (km) Multimode: 0~2
    Single mode: 0~100
    Wavelength (nm) Multimode: 1310/1550
    Single mode: 1310/1550
    Video Interface BNC
    Number of Videos 1/2/4/8/16
    Input /Output Impedance (Ω) 75 (imbalanced)
    SNR (Weighted) (dB) ≥67
    Bandwidth (Hz) 5~7.5
    Auto-compatible Video System PAL, SECAM, NTSC
    Differential Gain (10%-90%APL) <1% (Typical)
    Differential Phase (10%-90%APL) <0.6° (Typical)
    Field Oblique Ratio (%) <5
    Audio Interface Screw terminal block
    Input /Output Impedance (Ω) 600 (Balanced/Unbalanced)
    Input /Output Voltage (Vp-p) 2 (Typical)
    Input /Output Level (dBm) 0 (Typical)
    Frequency Response (KHz) 10~12
    Encoding/Decoding (Bit) 24
    SNR (Weighted) (dB) ≥95
    Data Interface Screw terminal block
    Signal RS485/RS422/RS232/Manchester
    Bit Rate (Kbps) 0~400
    Error Rate <10-9
    Phone Interface RJ11
    Audio Bandwidth (KHz) 8
    Operation Mode P2P hotline mode /FXS-FXO
    Ethernet Interface RJ45
    Support Mode Half duplex or Full duplex
    Standards IEEE802.3 10/100M adaptive
    General Working Temperature (°C) 0~60
    Storage Temperature (°C) -40~80
    Working Humidity (%) 0~5, non-condensing
    Operating Voltage (V) AC: 110V, 220V
    DC: 5, 9, 24V (optional)
    MTBF (hrs) >100,000

    Standard Accessories
    No. Product Unit Quantity
    1 Optical Video set 1
    2 Power Adapter (Only for Standalone type VMC) piece 1
    3 Power Line (Only for Rack type VMC) piece 1
    * Card type media converters DO NOT include any power line or adapter and are used with the rackmount chassis.

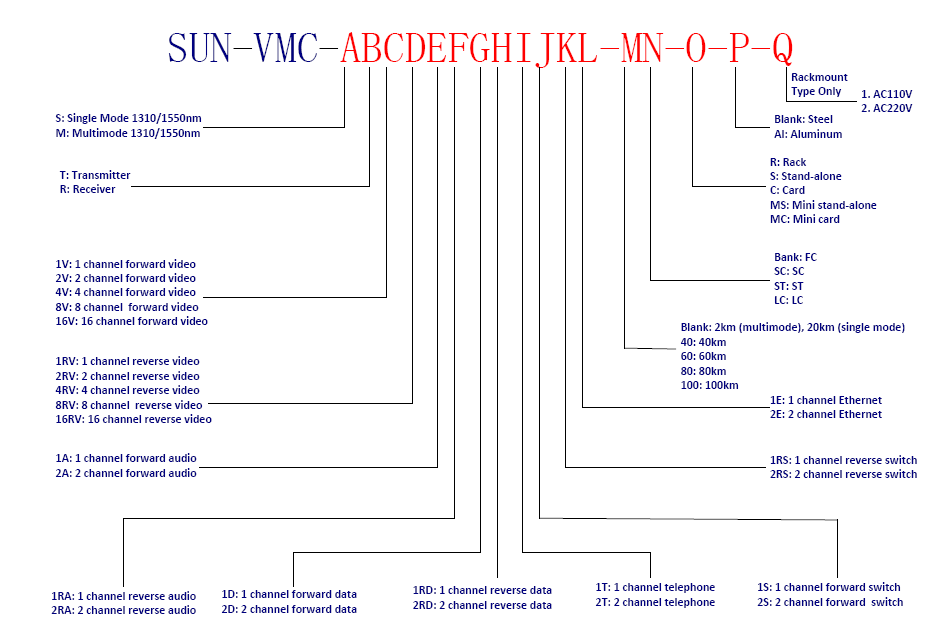

  • Note: The number of other functions will be changed according to the actual product except video function.

    Example: SUN-VMC-ST4V1RD-C-AL
    Single Mode, Transmitter, 4-channel forward video + 1-channel reverse data; 20km, FC port; Card type; Aluminum
  • ● Intelligent Transportation System (ITS)
    ● Surveillance System
    ● Broadcast television system
